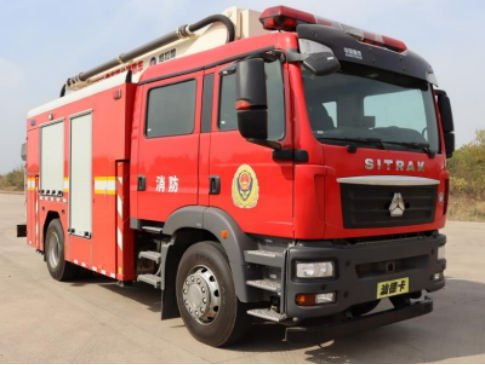

DG20 Aerial platform fire truck Length 8400 wide 2530 high 3780
1. The working bucket is equipped with power supply and hydraulic
interface to realize the expansion of external electric or
hydraulic tools to carry out rescue work.
2. Main performance parameters
| Full-load mass (kg): | 19200 |
| Overall dimensions (mm): | Length 8400 wide 2530 high 3780 |
| Specific power (kW / t): | ≥13 |
| Chassis brand/model: | Swatow/ZZZ5206N471GF5 |
| Number of passengers (person) | 2+4 |
| Chassis Maximum Power (kW): | 257 |
| effluent standard: | country Ⅵ |
| Approach angle/departure angle of (°) | 13/10 |
| Maximum speed (km/h): | 90 |
| Minimum turning radius (m): | ≤8 |
| Maximum working height (m): | 20 |
| Maximum working range (m): | 13 |
| Boom luffing angle (°): | telescopic boom 0~80 (relative to the horizontal plane) Folding boom 0~180 (relative to telescopic boom) |
| Slewing range: | 360°continuous slewing |
| Outrigger deployment time (s): | ≤30 |
| Boom lifting to the maximum height and rotating 90° time (s): | ≤100 |
| Rated load of working bucket (kg): | 300 |
| Extinguishing agent loading capacity (L): | 3050 (water: 2500, B foam: 550) |
| Fire pump brand/model: | HALE/CB10/60-MBP |
| Pump pressure / flow (MPa / (L / s)): | 1.0/60 |
| Fire Cannon Brand/Model: | TFT/PLKD32-Tornado |
| Cannon pressure / flow (MPa / (L / s)): | 0.7/32 |
| Foam Proportional Mixer Model: | PH64 |
| Mixing liquid flow (L/s): | 16~64 |
3. Product features:
| High safety: the arm, outrigger and sub-frame are all welded with
high-strength welding steel, and the arm adopts polygonal structure
to improve the rigidity of the arm, the safety coefficient is
higher than the national standard requirement, which ensures the
absolute safety of the personnel. |
| The whole vehicle is equipped with more than ten kinds of safety
protection functions, such as soft leg protection, broken chain
protection, platform anti-collision, platform overweight
protection, etc., which ensures the safety of operation and can be
operated with confidence. |
| Equipped with water tank low liquid level protection function, when
the water level in the tank is lower than the set value, the engine
automatically reduces to idle speed, avoiding the water pump to run
at high speed without water, ensuring the safety of the water pump. |
| The operation panel of the water pump is far away from the water
outlet of the water pump to avoid accidental injury. |
| Compact structure, good throughput, strong maneuverability: the
overall length of the vehicle is less than 8.5m, the smallest size
of the domestic 20m elevated platform fire truck, suitable for use
in narrow spaces. |
| Multi-functional: it has the functions of elevated spraying and
rescue, and can take 6 people at the same time, so it can be used
as the main battle fire truck. |
| Intelligent and humanized: the outriggers have one-key extension,
leveling and one-key recovery functions. The boom has one-key
automatic recovery function. |
| Visual human-computer interaction: the pump room and platform
operation are equipped with a color display screen, which can
display the working position and status parameters of the boom in
real time, which can enhance the operational efficiency, and also
display the information of water tank level and water line
pressure. |
| Flexible operation: the outrigger and boom can be operated by wired
remote control, during the operation, you can observe the
surrounding environment and action of the outrigger and boom at the
same time, which makes the field of vision broader and the
operation safer. |
| Advanced control system: The electro-hydraulic proportional control
adopts international famous brand control components. The hydraulic
system adopts the most advanced load-sensitive pump +
load-sensitive electro-hydraulic proportional valve system, which
is energy-saving and environmentally friendly, and several
movements of the boom can be carried out at the same time without
affecting each other's speed, thus realizing accurate and smooth
operation of the outriggers and boom movements. |
| Optimal boom form: 4-section synchronized telescopic boom +
1-section folding boom type, not only can cross the obstacles for
operation, but also compared with the pure curved boom structure,
the operation is more simple and quicker, and the boom reaches the
designated working position with the fastest speed. |
| [Intelligent option] Vehicle information QR code query function,
provide vehicle QR code can query the operation method and
maintenance information for users to view in real time. |
